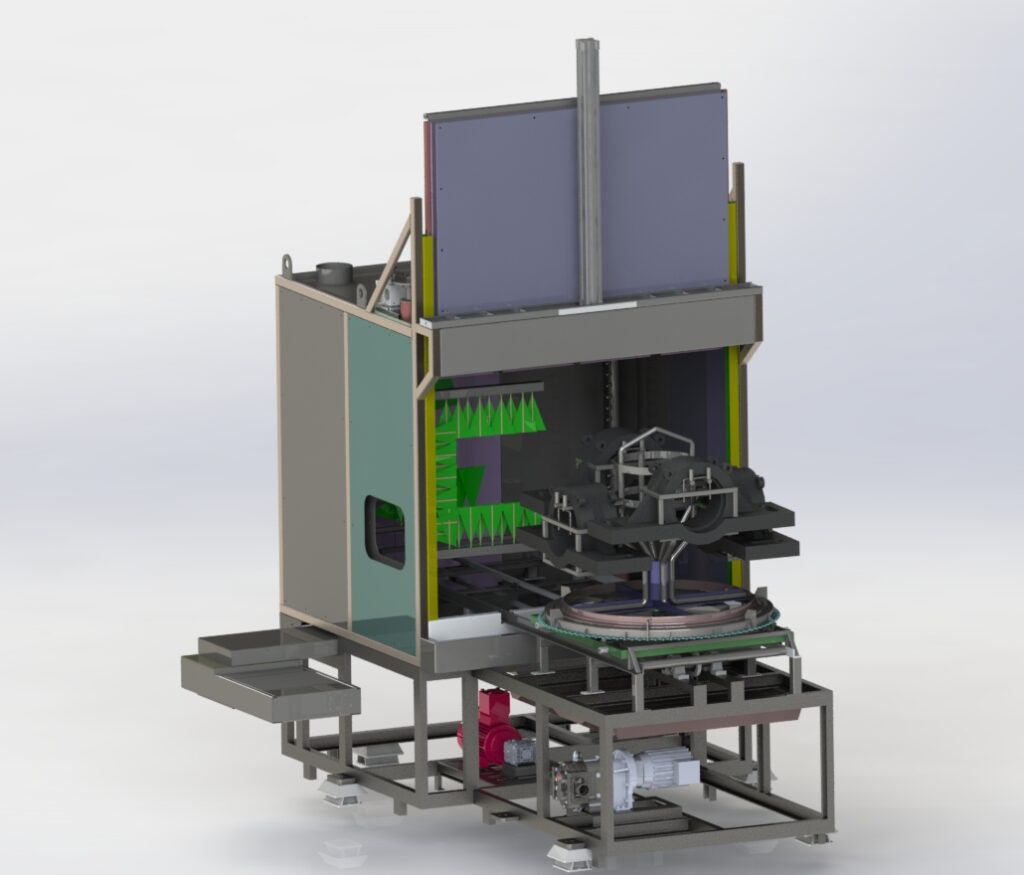

Axle Box Cleaning Plant for Railway Axle Box & Bearing Washing
An Axle Box Cleaning Plant is a specialized automated system designed to clean railway axle boxes, bearing housings and associated components before inspection, maintenance or bearing replacement. These plants remove grease, oil, brake dust and contaminants from axle box castings, bearing seats and covers, ensuring defects are visible during inspection and maintaining safe railway operations.
Configured as an automatic axle box cleaning plant, the system delivers high-pressure, programmable cleaning cycles that replace manual scrubbing, accelerate turnaround and support predictive maintenance programs across Indian Railways, metros and transit depots.
What Is an Axle Box Washing Plant?
An axle box washing plant is an enclosed or semi-enclosed system equipped with high-pressure spray jets, rotating fixtures and sometimes ultrasonic cleaning for deep degreasing of axle box components. Axle boxes are loaded into the wash chamber, and automated wash, rinse and drying cycles run without manual intervention.
As a railway axle box washing plant, it provides:
- Thorough cleaning of axle box castings, bearing seats, covers, bolts and lubrication passages.
- Hot water and detergent or solvent-based cleaning for effective removal of heavy grease and caked oil.
- Drying and rust prevention to ensure axle boxes are ready for inspection or bearing installation.
This automation ensures consistent cleanliness, faster inspection readiness and reduced manual labour compared to hand cleaning.
Railway Axle Box Washing Plant – Why It Matters
Proper cleaning in a railway axle box washing plant is critical because:
- Inspection accuracy: Clean bearing seats and axle box castings allow inspectors to detect cracks, wear, corrosion and defects during visual and magnetic particle (MP) inspections.
- Bearing life: Contaminated bearing seats can cause misalignment and premature bearing failure; clean surfaces ensure proper bearing installation and longevity.
- Safety: Removing old grease and contaminants prevents false readings during non-destructive testing (NDT) and ensures safety-critical components meet maintenance standards.
An automatic axle box cleaning machine standardizes cleaning across all axle boxes, ensuring every unit meets inspection readiness and quality standards.
Automatic Axle Box Cleaning Plant – How It Works
An automatic axle box cleaning plant operates through the following stages:
- Loading: Axle boxes are positioned on racks, turntables or conveyors inside the wash chamber, either manually or via automated transfer system.
- Pre-Wash / Degreasing: High-pressure spray or solvent bath removes bulk grease, oil and loose contaminants from external and internal surfaces.
- Rinse: Fresh water or solvent rinse removes detergent and suspended contaminants, preparing the axle box for inspection.
- Drying & Rust Prevention: Blow-off nozzles, hot air drying or vapor-phase rust inhibitor application ensures axle boxes exit dry and protected against corrosion.
- Main Wash: Hot water (60–80 °C) or heated solvent mixed with industrial detergent is sprayed through oscillating nozzles, targeting:
- Axle box castings (internal and external)
- Bearing seats and journals
- Covers, bolts and fasteners
- Lubrication grooves and oil passages
The entire cycle is PLC-controlled, with adjustable pressure, temperature and time for different axle box types and contamination levels.
Rail Axle Box Washing Plant – Key Features
A well-engineered rail axle box washing plant includes:
- High-pressure spray system: 50–150 bar with oscillating or rotating nozzles for complete coverage of complex axle box geometries.
- Turntable or conveyor: Rotates axle boxes during cleaning for uniform coverage of all surfaces and internal cavities.
- Hot water / solvent heating: Heated wash solutions (up to 80 °C) for effective degreasing and removal of heavy grease.
- Ultrasonic option: Some plants integrate ultrasonic cleaning for deep penetration into threads, grooves and blind holes.
- Drying and rust prevention: Blow-off nozzles and vapor-phase inhibitors prevent rust between cleaning and bearing installation.
- PLC + HMI control: Programmable recipes for different axle box types (passenger, freight, metro, locomotive) with data logging.
- Stainless steel construction: Corrosion-resistant chambers and piping for long service life in depot environments.
These features make the axle box cleaning machine efficient, reliable and compliant with railway maintenance standards.
Axle Box Cleaning Plant – Typical Specifications
Adjust to match your standard models:
Specification | Value (example) | Notes |
System type | Enclosed Axle Box Cleaning Plant | Cabinet or tunnel configuration |
Capacity | 10–20 axle boxes per 8-hour shift | Depends on cycle time |
Axle box types | Passenger, freight, metro, locomotive axle boxes | Universal or custom fixtures |
Cleaning method | High-pressure spray / ultrasonic (optional) | 360° coverage |
Operating pressure | 50–150 bar (adjustable) | Based on contamination level |
Water/solvent temp | 60–80 °C | Hot water / steam heating |
Detergent/solvent | Automatic dosing system | Industrial degreasers |
Turntable | Motorized rotation during wash cycle | For uniform cleaning |
Cycle time | 15–30 minutes per axle box | Wash + rinse + drying |
Drying system | Hot air blow-off / vapor-phase rust inhibitor | Prevents corrosion |
Controls | PLC + HMI with recipes and alarms | Data logging for maintenance records |
Construction | Stainless steel chamber and spray manifolds | Corrosion-resistant |
Options | Ultrasonic cleaning, extra drying, robotic loading | Tailored to depot needs |
Axle Box Cleaning Machine – Applications
An axle box cleaning machine is essential in:
- Indian Railways: Axle box overhaul shops, bearing replacement facilities and bogie maintenance depots for passenger and freight car maintenance.
- Metro systems: Axle box cleaning during scheduled bearing replacements and preventive maintenance.
- Transit and light rail: Axle box cleaning before inspection in urban transit maintenance facilities.
- Bearing reconditioning plants: Deep cleaning of axle boxes before disassembly, inspection and bearing installation.
By using an automatic axle box cleaning plant, railway operators improve bearing life, reduce manual labour and maintain safety-critical axle box assemblies more effectively.
Benefits of an Automatic Axle Box Cleaning Plant
Implementing an automatic axle box cleaning plant provides clear operational and safety benefits:
- Improved inspection accuracy: Clean bearing seats and axle box castings allow maintenance crews to detect cracks, wear and defects during visual and NDT inspections.
- Longer bearing life: Properly cleaned bearing seats ensure correct bearing installation, reducing misalignment and premature failure.
- Labour and time savings: Automated cleaning replaces manual scrubbing, reducing cycle time from hours to 15–30 minutes per axle box.
- Worker safety: Enclosed operation reduces operator exposure to high-pressure spray, solvents and manual handling.
- Consistent quality: PLC-controlled cycles ensure every axle box receives the same thorough cleaning, regardless of operator or shift.
Frequently Asked Questions
What is an Axle Box Cleaning Plant used for?
An Axle Box Cleaning Plant is used to clean railway axle box castings, bearing seats, covers and associated components before inspection, bearing replacement or refurbishment. It removes grease, oil, brake dust and contaminants, making defects visible during inspection and ensuring proper bearing installation.
How long does it take to clean one axle box in an automatic plant?
A typical automatic axle box cleaning plant completes a full wash, rinse and drying cycle in 15–30 minutes per axle box, depending on contamination level and configuration. This allows 10–20 axle boxes to be cleaned per 8-hour shift.
Can one axle box washing plant handle different axle box types?
Yes. Modern rail axle box washing plants use PLC control with multiple programmable recipes to accommodate passenger car axle boxes, freight wagon axle boxes, metro axle boxes and locomotive axle boxes. Spray patterns, pressure, temperature and cycle times are adjusted per axle box type.
What contaminants can an axle box cleaning machine remove?
An axle box cleaning machine can remove heavy grease, oil, brake dust, rust, scale, dirt and caked-on contaminants from axle box castings, bearing seats, covers and lubrication passages. Hot water or solvent-based cleaning with high pressure ensures effective degreasing.
Where can I find Axle Box Cleaning Plant manufacturers in India?
Ultramax Hydrojet manufactures Axle Box Cleaning Plants and automatic axle box washing plants for Indian Railways, metros and transit systems. We supply customized systems with high-pressure spray, ultrasonic cleaning options, PLC control and rust prevention. Contact us in Chennai for specifications and depot visits.
