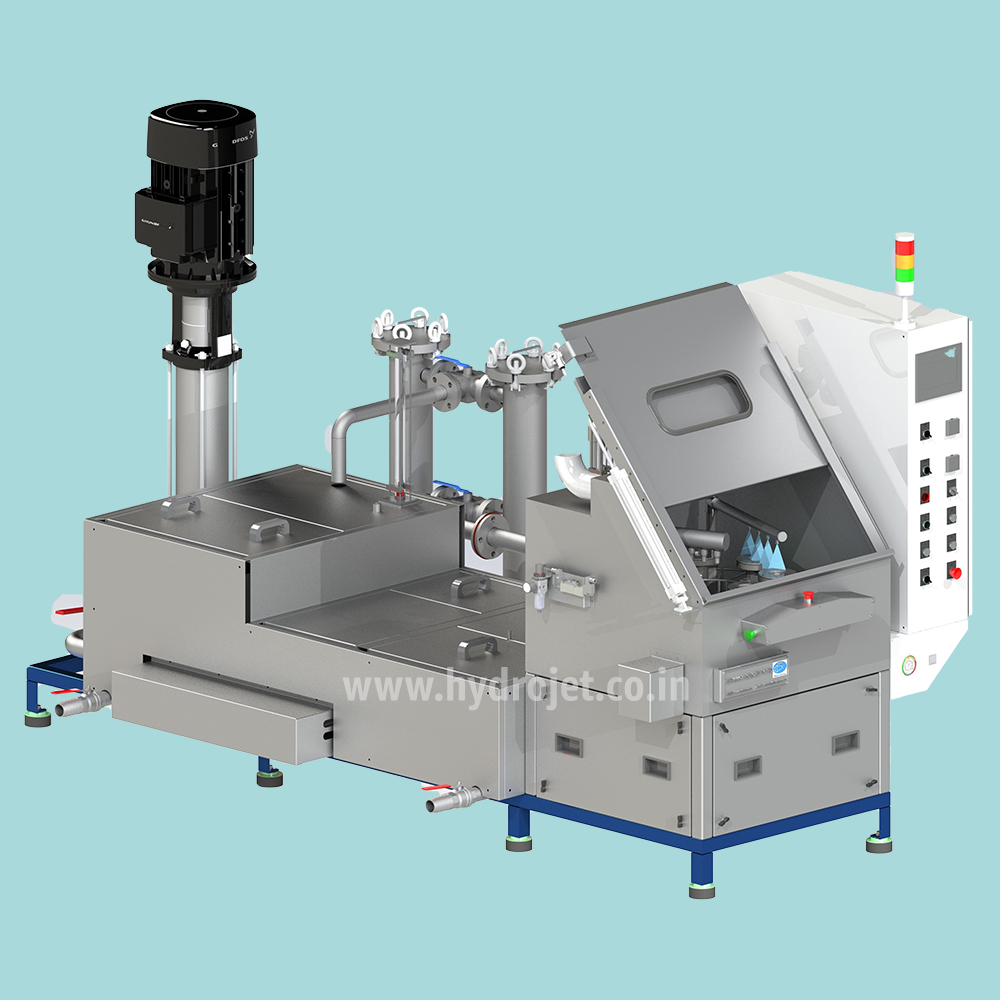

High Pressure Submerged Washing Machine​

High Pressure Submerged Washing Machine

The Ultramax High-pressure Component Washing Machine is specifically designed for immersion washing using aqueous detergents. This innovative machine features the capability to perform chip removal through submerged spraying, utilizing a high-pressure and small-flow rate jet. Compared to low-pressure and large-flow rate submerged washing methods, the Submerged High-pressure Washing Machine excels in chip removal tasks. The water jet pressure ranges from 20 bar to 500 bar, depending on the component geometry requirements.

When the water jet is sprayed under water, it encounters resistance from the surrounding water, resulting in reduced jet power. However, this process creates cavitation between the jet and the surrounding water. The Submerged High-pressure Washing Machine leverages this cavitation to maximize its cleaning power, ensuring efficient and thorough washing of industrial components.

  • Component placed in special fixture.
  • Component goes to below the surface of solution for cleaning of oil galleries and water jackets by fix nozzle.
  • High pressure spray through ceramic special nozzle arrangement.
  • In this type automotive parts washer, the solution will be circulated for recycling by automatic micron filtration system
  • Collection tank & clean tank.
  • Reciprocating high pressure pump.
  • High pressure vertical pressure wash pump.
  • Ambient Working temperature.
  • Special custom build basket to suit the component.
  • Automotive parts washer cabinet with front loading auto door open & close.
  • Fully enclosed front loading component cleaning machine.
  • Automatic door open & close.
  • PLC controlled process.
  • Two hand push buttons with safety screen sensor.
  • Oil skimmer.
  • Chip removal for hydraulic and pneumatic valve parts.
  • Moulding sand removal for precision casting parts
  • Chip removal for general-purpose work pieces, machined casting engine parts for two- and four-wheel vehicles and farm equipment.
  • Automotive engine & transmission parts like cylinder head, crankshaft, camshaft, gears, housings etc.
  • Automotive systems like injection, break and steering systems, turbo chargers etc.
